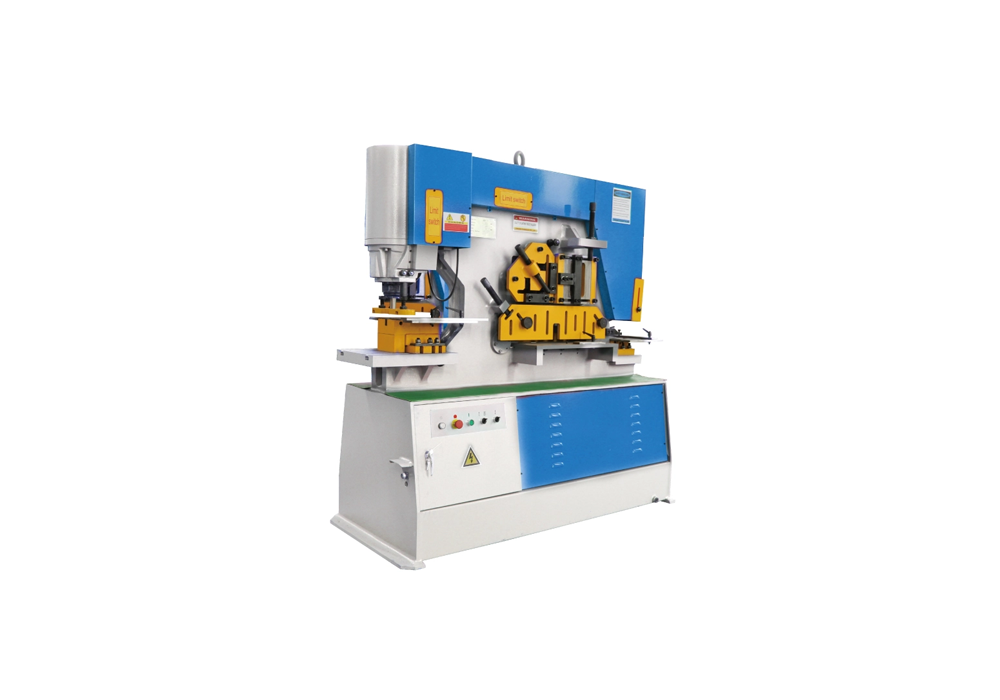

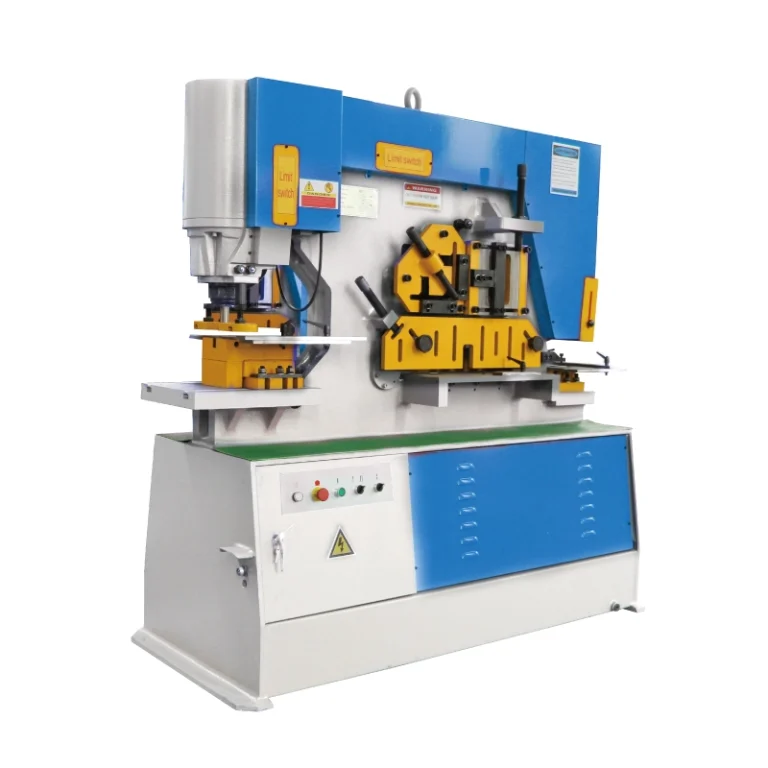

Hydraulic Ironworker Machine

  • Industrial-grade hydraulic Iron Worker featuring multiple functions, including: Punch, Angle Shear, Flat Shear, Round/Square Bar Shear, Rec Notch, V-Notch, Channel Shear, I beam shear, shearing T-bar, Press Brake Angle Bending and Pipe Notching It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.
  • PUNCHING-The Punching Station offers a full range of universal punches and dies。 Unique style allows for large angle iron punching and large channel punching. A large stripper viewing window and the swing away design offers ease of operation. Two-piece gauging table with rulers and stop is offered as standard equipment. Quick change coupling nut and sleeve makes for rapid replacement or changing of the die in use.
  • NOTCHING-The Notching Stations unique design allows for unsurpassed cutting of angle and flat bar stock. Electrically Interlocked safety guards are installed for maximum operator safety. Built into this ironworker are three gauging stops for precise positioning along with ventilated guard for maximum operator visibility
  • FLAT SHEARING-At the Flat Bar Shearing Station you can easily adjust the hold for precision cutting and shearing without loosing operator visibility. The large 15-inch squaring arm is inlaid with a scale and comes standard on all machines. A specially contoured anti-distortion blade provides quality cuts while a lower blade offers maximum versatility with four usable edges. Set Screws allow for easy gapping with no shimming required. An included large squaring arm makes miter cuts easy to do. Three-foot electronic back gauge allows for fine adjustment and precision accuracy and features a large contact button for maximum productivity.
  • Certified Quality: CE and ISO certifications.
Request a quote
Ironworker Machine

Video

Watch video below to learn more details

Ironworker Machine
Play

Technical Parameters:

ModelQ35Y-16Q35Y-20Q35Y-25Q35Y-30Q35Y-40
Punching Pressure Ton6090110140200
Max. cutting thickness (mm)1620253040
Plate strength (N/mm2)≤450≤450≤450≤450≤450
Cutting angle (degree)7°8°8°8°8°
Shearing size of one stroke (TxW)mm16*25020*33025*33030*35535*400
8*40010*48016*60020*60025*700
Slider travel mm80808080100
Throat depth(mm)300355400600600
Punching thickness(mm)1620252635
Max. Punching diameter(mm)2530353841
Main Motor (Kw)45.57.51115
Dimensions L*W*H (mm)1690*760*18001900*800*19002400*990*21002700*1060*23002800*1060*2300
Weight (Kg)16002600480068009500

◆A Special order for the joist & channel moulds needed.

ProfileRound BarSquare BarAngleT BarI-H BeamChannel
90°shearing45°shearing90°shearing45°shearing
Q35Y-164540×40125x125x1270x70x8120x120x1260x60x8126x74x5126x53x5.5
Q35Y-205050×50140x140x1270x70x10140x140x1270x70x10160x86x6160x60x6.5
Q35Y-256055×55160x160x1480x80x7160x160x1480x80x10200x102x9200x75x9
Q35Y-306560×60180x180x1680x80x10180x180x1680x80x10280x124x10.5280x86x11.5
Q35Y-407060×60200x200x2080x80x10180x180x1680x80x10280x124x10.5280x86x11.5
