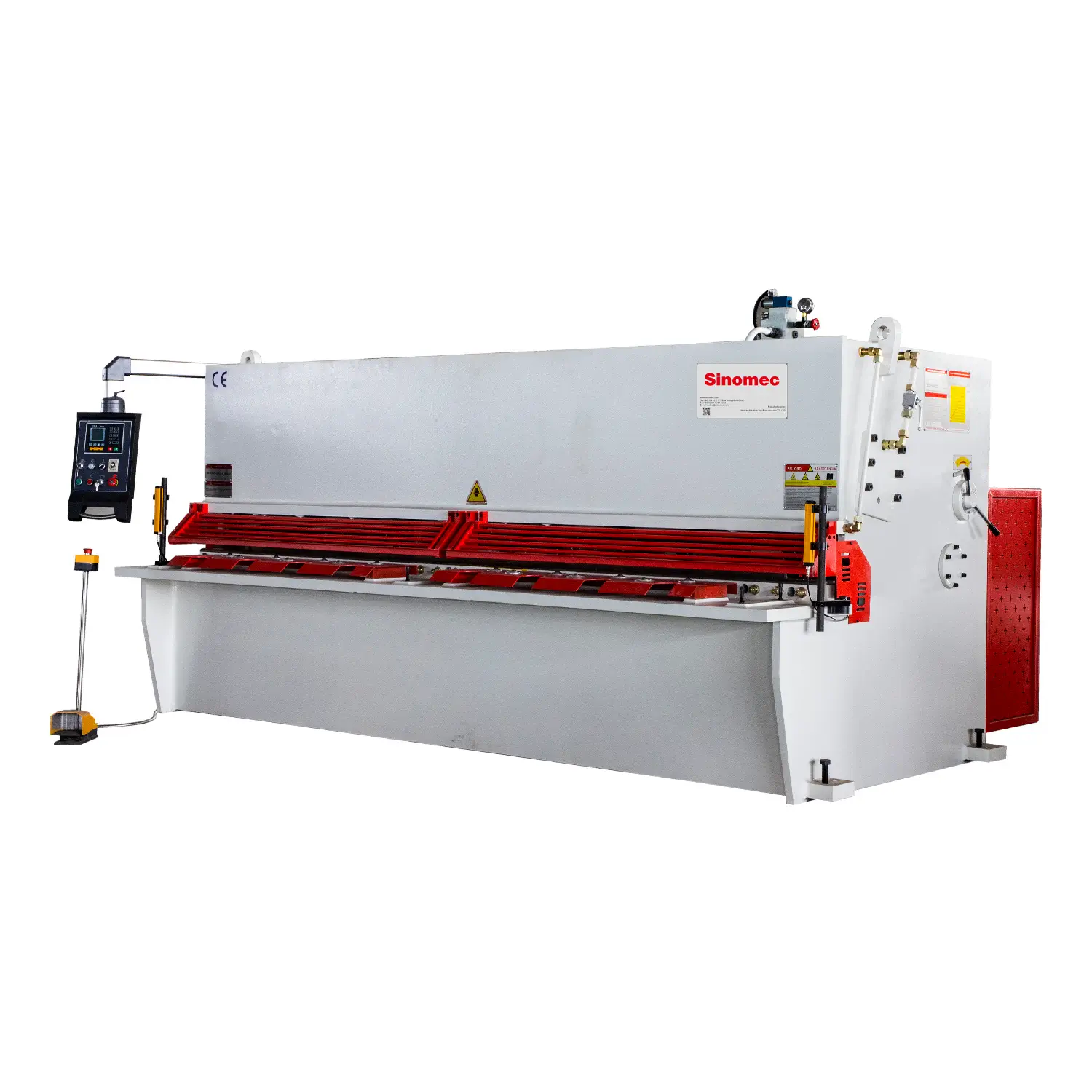

QC12K-Series Hydraulic Shearing Machine
CNC Control System
Main Components
The servo Crowning system repeatable crowning that is precisely adjusted by a basic hand crank and digital readout or an electric motor driven by the CNC control system
Thin Metal Sheet Support System
Pneumatic Sheet Support System special eliminates common problem of the wide & thin metal sheet sagging & bending. Support the sheet from below, parallel to the backguage stopper, throughout the entire cutting process. This ensures sheet stability & maximizes cutting accuracy.
Automatic Loading Feeding & Stacker
Automatic loading & feeding system with CNC hydraulic guillotine shearing machine form the flexible automatic production.
Technical Parameters
| Model | Mild steel (450MPa) | Cutting length (mm) | Shear angle | Travel time | Back gauge range (mm) | Main motor (kw) | Weight (kg) | LXWXH (mm) |
| 4X2500 | 4 | 2500 | 1º30´ | 16 | 20~500 | 5.5 | 3600 | 3040X1550X1550 |
| 4X3200 | 4 | 3200 | 1º30´ | 13 | 20~500 | 5.5 | 4500 | 3840X1550X1550 |
| 4X4000 | 4 | 4000 | 1º30´ | 10 | 20~600 | 5.5 | 6500 | 4600X1700X1700 |
| 6X2500 | 6 | 2500 | 1º30´ | 15 | 20~500 | 7.5 | 5000 | 3040X1710X1620 |
| 6X3200 | 6 | 3200 | 1º30´ | 12 | 20~500 | 7.5 | 5800 | 3840X1850X1620 |
| 6X4000 | 6 | 4000 | 1º30´ | 9 | 20~600 | 7.5 | 8200 | 4620X1850X1700 |
| 6X5000 | 6 | 5000 | 1º30´ | 8 | 20~600 | 7.5 | 10500 | 5400X1850X1700 |
| 6X6000 | 6 | 6000 | 1º30´ | 5 | 20~800 | 11 | 14000 | 6480X2100X2300 |
| 8X2500 | 8 | 2500 | 1º30´ | 11 | 20~500 | 7.5 | 5500 | 3040X1700X1700 |
| 8X3200 | 8 | 3200 | 1º30´ | 8 | 20~500 | 7.5 | 6300 | 3860X1700X1700 |
| 8X4000 | 8 | 4000 | 1º30´ | 8 | 20~600 | 7.5 | 8200 | 4640X1700X1700 |
| 8X5000 | 8 | 5000 | 1º30´ | 8 | 20~600 | 7.5 | 11500 | 5400X2400X2000 |
| 8X6000 | 8 | 6000 | 1º30´ | 8 | 20~800 | 11 | 20000 | 6480X2100X2350 |
| 10X2500 | 10 | 2500 | 1º30´ | 10 | 20~500 | 11 | 7200 | 3040X1800X1700 |
| 10X3200 | 10 | 3200 | 1º30´ | 10 | 20~500 | 11 | 8000 | 3860X2000X1700 |
| 10X4000 | 10 | 4000 | 1º30´ | 10 | 20~600 | 11 | 12050 | 4650X2100X2000 |
| 10X6000 | 10 | 6000 | 1º30´ | 10 | 20~800 | 15 | 24000 | 6500X2100X2300 |
| 12X2500 | 12 | 2500 | 2º | 12 | 20~600 | 18.5 | 9000 | 3140X2050X2000 |
| 12X3200 | 12 | 3200 | 2º | 10 | 20~600 | 18.5 | 10500 | 3880X2150X2000 |
| 12X4000 | 12 | 4000 | 2º | 10 | 20~600 | 18.5 | 14800 | 4680X2150X2100 |
| 12X6000 | 12 | 6000 | 2º | 5 | 20~1000 | 18.5 | 26000 | 6900X2600X2700 |
| 16X2500 | 16 | 2500 | 2º30´ | 10 | 20~600 | 18.5 | 11000 | 3140X2150X2000 |
| 16X3200 | 16 | 3200 | 2º30´ | 10 | 20~600 | 18.5 | 14000 | 3880X2150X2000 |
| 16X4000 | 16 | 4000 | 2º30´ | 10 | 20~800 | 18.5 | 16000 | 4650X2150X2200 |
| 16X6000 | 16 | 6000 | 2º | 5 | 20~1000 | 22 | 32000 | 6900X2700X2700 |
| 20X2500 | 20 | 2500 | 3º | 8 | 20~800 | 22 | 17000 | 3440X2300X2500 |
| 20X3200 | 20 | 3200 | 3º | 8 | 20~800 | 22 | 20000 | 4150X2350X2700 |
| 20X4000 | 20 | 4000 | 3º | 5 | 20~1000 | 22 | 22000 | 4850X2600X2400 |
| 20X6000 | 20 | 6000 | 3º | 4 | 20~1000 | 22 | 47000 | 6700X3000X3000 |
| 25X2500 | 25 | 2500 | 3º | 8 | 20~1000 | 37 | 20000 | 3200X2700X2900 |
| 25X3200 | 25 | 3200 | 3º | 5 | 20~1000 | 37 | 24000 | 4200X2400X2500 |
| 30X2500 | 30 | 2500 | 3º | 4 | 20~1000 | 37 | 28000 | 3300X2900X3000 |
| 30X3200 | 30 | 3200 | 3º30´ | 4 | 20~1000 | 40 | 34000 | 4200X2500X2600 |
| 40X2500 | 40 | 2500 | 4º | 3 | 20~1000 | 75 | 46000 | 3200X3300X3200 |
| 40X3200 | 40 | 3200 | 4º | 3 | 20~1000 | 90 | 58000 | 4300X3300X3000 |
