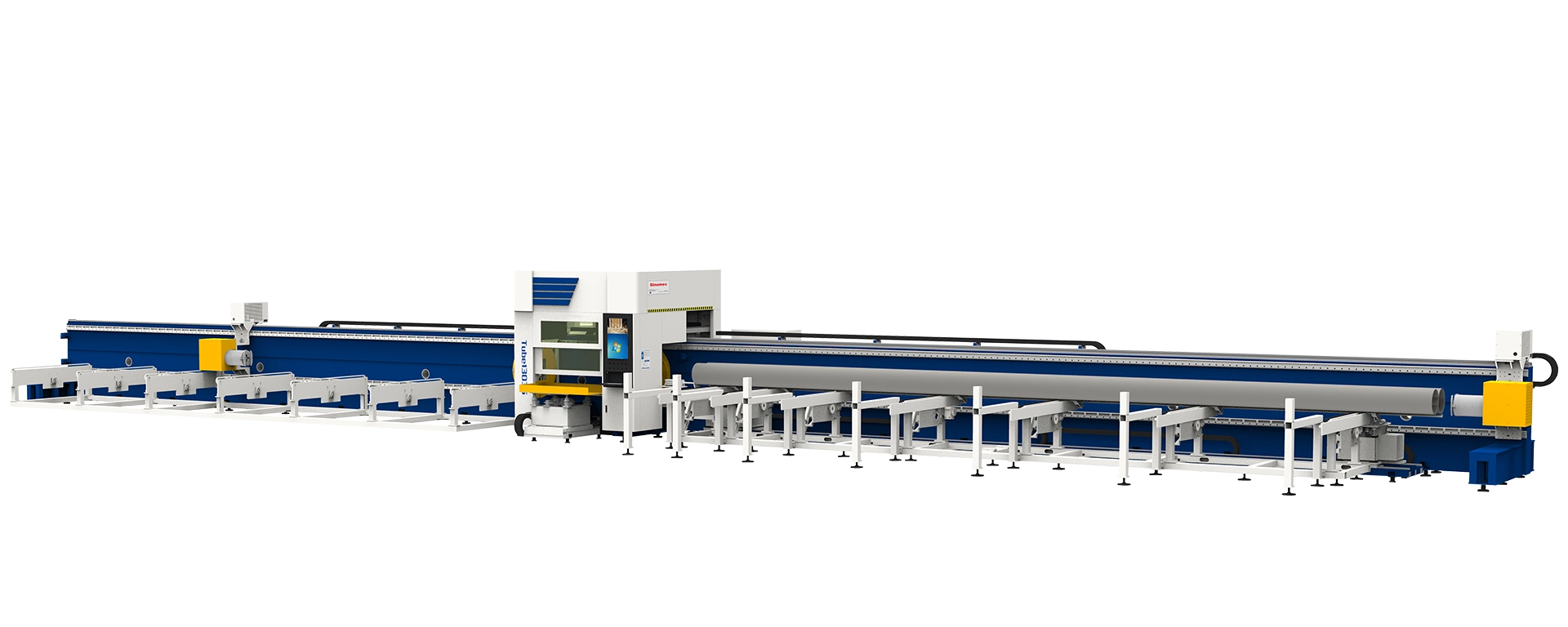

SLT Series Automatic Tube Laser Cutting Machine

  • High-speed and high-power fiber laser cutting machine, which integrates the latest generation of high-efficiency fiber laser source;
  • Machine Bed adopts high-strength integral super heavy plate welding machine bed, after high temperature secondary annealing heat treatment process;
  • Large gantry CNC milling machine precision processing, good rigidity and stability;
  • The beam uses a patented cast aluminum beam, with high strength and weight;
  • It has the advantages of good rigidity, high precision and high-speed gear and rack transmission, and mainly aims at the fast and precise cutting of metal sheets.
  • Reliable Performance: Thorough factory testing before shipment ensures top performance.
  • Strong Support: Free installation, training, and 2-year warranty with 24-hour service response.
  • Certified Quality: CE and ISO certifications.
Request a quote
Tube Laser Cutting Machine

Video

Watch video below to learn more details

pipe laser cutting machine
Play

Automatic Pneumatic Chuck

  • Fully automatic pneumatic chuck, stable & efficient.
  • One key to release the clamp, automatic centering, 3 times speed of electric chuck.
  • Pneumatic release clamp, stronge clamping force and adjustable strength, heavy tubes do not loosen and slip, don’t deform light tubes, improve the cutting accuracy.
Request a quote

IPG, Raycus & Max Laser Source

Supply with IPG Fiber Laser Sources; Raycus Fiber Laser Sources; Max Fiber Laser Sources.

  • IPG fiber laser source provide up to 50% conversion efficiency, high power stability and superior beam quality along with excellent durability. IPG systems are ideal for industries that demand precision, consistency, and minimal downtime,
  • Raycus fiber laser source is cost-effective and reliable in the long term. It offers stable power output, making it a decent choice for small businesses or entry-level setups.
  • MAX fiber laser source offers solid marking performance and better stability in many applications. Max is often used for mass-production environments and supports a wide range of materials.
Request a quote

Laser Cutting Head

Supply top brand laser cutting head like PRECITEC; RAYTOOLS; FSCUT.

  • LT Ultra 3D Laser Cutting Head:
    5-Axis Laser Cutting Head is specail for tube laser cutting. The versatile laser head is designed for superior performance durability – enabling seamless, motion without interruption.
  • PRECITEC Laser Cutting Heads:
    Automated 2D laser cutting, Max efficiency automated focus position adjustment. Robust design for a long life and min maintenance costs. Flexibility for different materials steel, aluminum or copper. Consistently high cutting quality!
  • RAYTOOLS Laser Cutting Heads:
    Automatic quick focusing, reducing human intervention. multiple protection lens, High-precision motion control for smooth cutting operations.
  • FSCUT (BOCHU) Laser Cutting Heads:
    Designed for high-performance, precision-driven laser cutting applications. High accuracy in intricate designs, ensuring that the cuts meet quality standards.
Request a quote

Cutting Samples

  • 3D Laser Cutting; Bevel Cutting
  • High Speed Cutting
Request a quote

Automatic Loading & Unloading System

Automatic Loading & Unloading System with laser cutting machine form the flexible automatic production.

  • Automatic production line complete for the whole process from loading, unloading, cutting and collect.
  • Connect with ERP, inventory and easy management, Improve the production, reduce manual and working.
Request a quote

Technical Parameters:

ModelUnitSLT-6035SLT-9028SLT-9036SLT-12036SLT-13055SLT-13065SLT-1308SLT-13100
Tube processing rangemmΦ25-Φ360Φ10-Φ280Φ25-Φ360Φ25-Φ360Φ40-Φ550Φ50-Φ650Φ160-Φ850Φ100-Φ1000
mm□25-□350□10-□280□35-□350□25-□350□40-□550□50-□460□160-□850□100-□700
 X axis strokemm74707470120501350013500135001350013500
Y axis strokemm40037080010001000110012501250
A, B axes stroke　Unlimited rotary
X,Y axes positioning accuracymm/m±0.03±0.03±0.05±0.05±0.05±0.1±0.1±0.1
X,Y axes repositioning accuracymm/m±0.05±0.05±0.05±0.05±0.05±0.05±0.05±0.05
X,Y Max positioning speedm/min1001001008080606060
A axis Max positioning speedrpm1001001008080606060
A,B axes positioning accuracy′′±30±30±30±30±30±30±30±30
A,B Repositioning accuracy′′±10±10±10±10±10±10±10±10
Tube maximum weightKg1500800150015003000300055005700
Loading tube lengthmm6000900090001200012500130001300013000
Quantity of Chuckpcs3 Chucks3 Chucks3 Chucks3 or 4 Chucks3 or 4 Chucks 4 Chucks 4 Chucks 4 Chucks
Optional 1. Bevel (3D) Cutting; 2. High Speed
